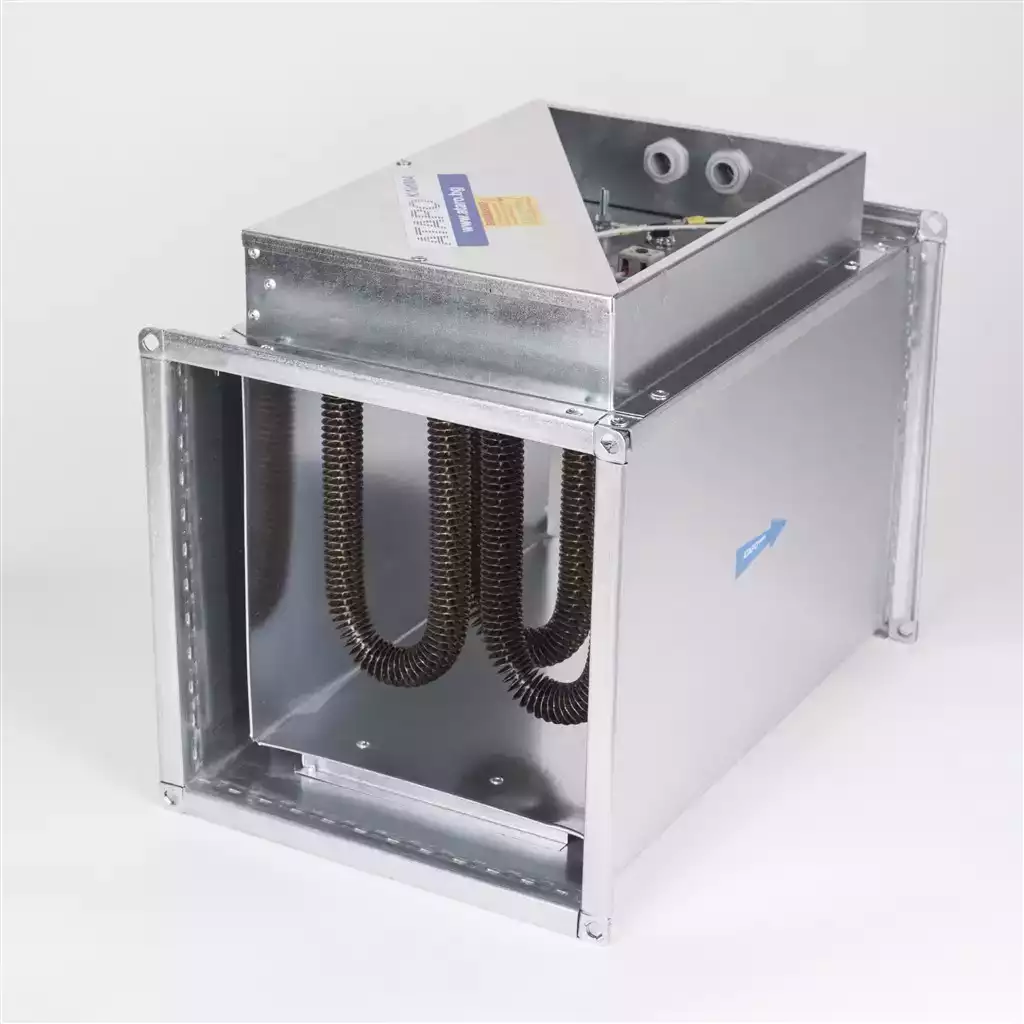

Rectangular electrical heaters

suitable for insertion in rectangular ductwork or in air-handling units...

Technical Data

for the technically curious bunch of you...

Sizes and Power Outputs

Width, mm	Height, mm	Length, mm	Power, kW	Current, V
400	200	500	3	380
400	200	650	6	380
400	200	800	9	380
400	200	950	12	380
500	250	500	3	380
500	250	500	6	380
500	250	650	9	380
500	250	650	12	380
500	250	800	15	380
500	250	800	18	380
500	250	950	24	380
500	300	650	6	380
500	300	650	9	380
500	300	650	12	380
500	300	800	15	380
500	300	800	18	380
500	300	950	24	380
500	300	950	30	380
600	300	500	9	380
600	300	500	12	380
600	300	600	12	380
600	300	600	15	380
600	300	700	18	380
600	300	800	24	380
600	300	900	30	380
600	300	1000	36	380
600	350	500	6	380
600	350	500	9	380
600	350	500	12	380
600	350	650	15	380
600	350	650	18	380
600	350	650	24	380
600	350	800	30	380
600	350	800	36	380
700	400	500	6	380
700	400	500	9	380
700	400	500	12	380
700	400	650	15	380
700	400	650	18	380
700	400	650	24	380
700	400	800	30	380
700	400	800	36	380
800	500	450	12	380
800	500	500	15	380
800	500	500	18	380
800	500	550	24	380
800	500	600	30	380
800	500	650	36	380
